Triplexer

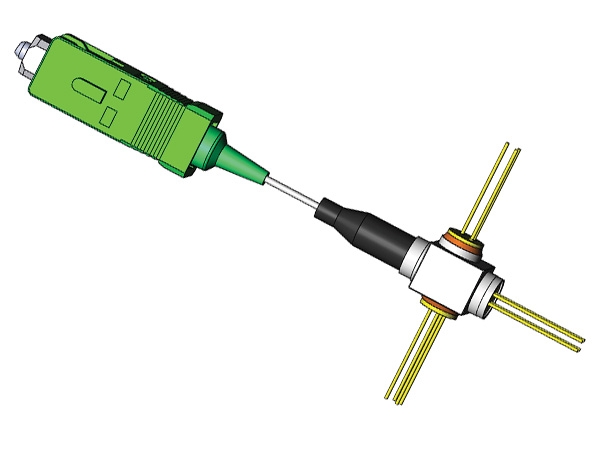

GPON ONU Triplexer with CATV

Features
Single fiber SC/APC pigtail
DFB 1310nm laser diode as 1.244Gb/s transmitter
APD 1490nm with TIA and 2.488Gb/s post amplifier receiver
1550nm PIN detector
RoHS compliant and lead-free
Operation Temperature: -20℃ ~ 85℃
Applications
FTTx application
PON network
CATV network
  • USource GPON ONU Triplexer Transceiver is designed for Gigabit Passive Optical Network (GPON). The Triplexer comprise of a 1310 Burst Mode optical transmitter, a 1490 Continuous Mode optical receiver and a 1550 Analog CATV receiver.

    BOSA Diplexer for GPON EPON
    Part No. Form ODN Class Data rate Wavelength Reach Receptacle
    UGP-N2U BOSA GPON Tx1.25G/Rx2.5G Tx1310nm/Rx1490nm 20km SC/UPC
    UGP-N2A BOSA GPON Tx1.25G/Rx2.5G Tx1310nm/Rx1490nm 20km SC/APC
    UGP-NTS Triplexer GPON Tx1.25G/Rx2.5G Tx1310/Rx1490 1550 20km SC/APC
    UEP-N2U BOSA EPON Tx1.25G/Rx1.25G Tx1310nm/Rx1490nm 20km SC/UPC
    UEP-N2A BOSA EPON Tx1.25G/Rx1.25G Tx1310nm/Rx1490nm 20km SC/APC
  • Please submit your queries, Engineer will offer a quick and professional response!

    *

    *

    *

    *
