BOSA

< >

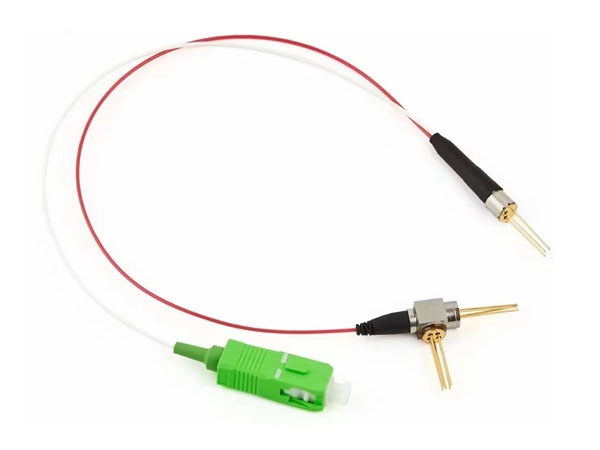

GPON ONU BOSA with PWDM

Features

Single fiber bi-directional data links with Asymmetric Data Rate

DFB 1310nm laser diode as 1.244Gb/s transmitter

APD 1490nm with TIA and 2.488Gb/s post amplifier receiver
1550 PD for CATV

Pigtail SC/APC or SC/UPC optional

RoHS compliant and lead-free

Operation Temperature: -20℃ ~ 85℃

Applications

FTTx application

GPON ONU with CATV

USource GPON ONU BOSA with PWDM integrates GPON ONU BOSA and PWDM, which is designed ideal for the GPON ONU with CATV. The BOSA built-in a 1310 DFB laser transmitter and a APD or Super-TIA receiver for 1490 signal, the PD is used for CATV 1550 signal.

BOSA Diplexer for GPON EPON
Part No.	Form	ODN Class	Data rate	Wavelength	Reach	Receptacle
UGP-N2U	BOSA	GPON	Tx1.25G/Rx2.5G	Tx1310nm/Rx1490nm	20km	SC/UPC
UGP-N2A	BOSA	GPON	Tx1.25G/Rx2.5G	Tx1310nm/Rx1490nm	20km	SC/APC
UGP-NTS	Triplexer	GPON	Tx1.25G/Rx2.5G	Tx1310/Rx1490 1550	20km	SC/APC
UGP-NTP	BOSA with PWDM	GPON	Tx1.25G/Rx1.25G	Tx1310nm/Rx1490 1550	20km	SC/APC
