Mini DVI Fiber Extender_DVI Converter-Fiber Optic Devices_Optical Communication Products_Manufacturer OEM ODM

Product

< >

Features:
Support PC resolution up to 3840*2160/30Hz

Support HDTV resolution up to 4k*2k/30Hz; or 4k*2k/60Hz(4:2:0)

10Gbp/s 1310nm DFB Laser

Extend distance up to 2km over SFM, 100m over MMF

Detachable 1x LC fiber connector

Offers EDID programming feature, learning the EDID from the display and restoring to the transmitter EEPROM

+5V power supply, DC Jack 3.5mm Power connector

The modules are compact enough to directly plug to graphic sources and displays by adopting DVIplugs

Complies with Class 1 Laser eye safety in compliance with FDA/CDRH and IEC 60825-1 Certifies FCC

and CE standards for EMI/RFI emission

Data security with negligible RFI/EMI emissions and loss of video quality due to no copper conductor present

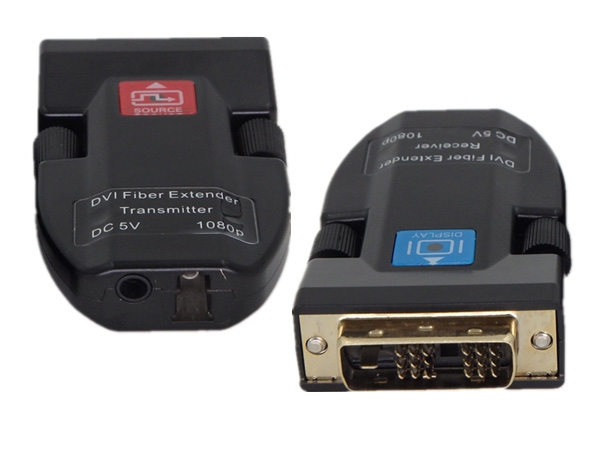

DVI-302S-TR is a high performance low cost 1xLC Fiber Extender, It integrate high speed SEDERS, laser driver, laser, InGaAs PIN and amplifier both in the transmitter and receiver. It extend the HD video transmission distance over fibers at 10.2Gb/s optical data rate.The max. distance is 2km over SMF.
