PON Transceivers

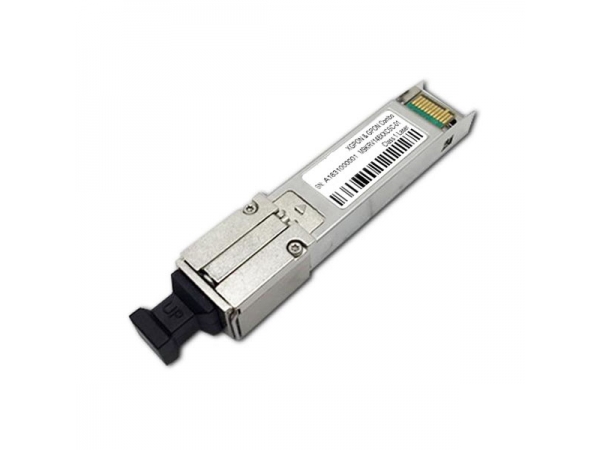

XGSPON GPON Combo SFP

XGS-PON RX1270nm/TX1577nm combined with GPON RX1310nm/TX1490nm
SFP+ Package
SC receptacle optical connector
Hot pluggable
2x10 SFP+ Electrical Interface
ITU-T G.9807.1 Class N1 compliant
ITU-T G.987.2 Class N1 compliant
ITU-T G.984.2 Class B+ compliant
YD-T 1688.8 D1 Class compliant
  • USource UCPON-L1 is an Combo OLT SFP+ transceiver combination of XGS-PON OLT and GPON OLT links. It is designed to support both the XGS-PON OLT and the GPON OLT specifications over a single fiber by usource WDM technology. The XGS-PON bidirectional link is configured with 1270nm/1577nm optics with 10G transmitter 1577nm EML laser and the GPON link is configured with 1310nm/1490nm optics. The 1270nm and 1310nm optical burst mode receivers with 2.5G transmitter 1490nm DFB laser.
    Model Reach Tx power Tx rate Tx wavelength Rx sensitivity Rx rate Rx wavelength
    UCPON-L1 20km 3-7 dBm 9.953Gb/s
    2.488Gb/s
    1577
    1490
    -28 dBm 9.953Gb/s
    1.244Gb/s
    1260~1280nm
    1290~1330nm

  • Please submit your queries, Engineer will offer a quick and professional response!

    *

    *

    *

    *
