Copper Transceivers

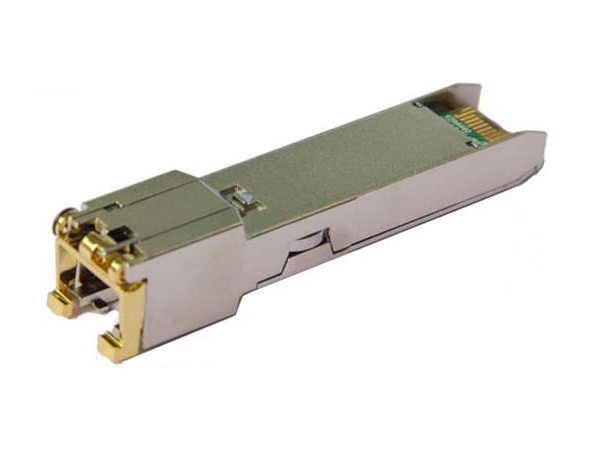

100BASE-T Copper SFP RJ45

Features
Encryption mechanism for firmware info
Support 10base-T / 100base-Tx
Hot-pluggable SFP footprint
Compact RJ-45 connector assembly
RoHS compliant and lead-free
Single +3.3V power supply
10/100base-Tx Fast Ethernet over Cat 5 cable
Operating temperature: industrial grade available, -40°C to +85°C
  • 100BASE-T Copper SFP RJ45 Transceiver is compatible with the 10base-T / 100base-Tx standards as specified in IEEE Std 802.3 . SFP-100BASE-T uses the SFP‘s RX_LOS pin for link indication. If pull up SFP‘s TX_DISABLE pin, SWITCH IC be reset.

    Copper SFP
    Part No. Form RJ-45 Data rate Interface Operating temperature Receptacle
    UTSFP-ME1 SFP CAT5 100M SERDES 0°C to +75°C RJ-45
    UTSFP-ME2 SFP CAT5 100M SERDES -40°C to +85°C RJ-45
    UTSFP-ME3 SFP CAT5 100M SGMII -40°C to +85°C RJ-45
    UTSFP-ME4 SFP CAT5 100M SGMII 0°C to +75°C RJ-45
  • Please submit your queries, Engineer will offer a quick and professional response!

    *

    *

    *

    *
