5G CWDM DWDM MUX widely used by China and Korea Operators
Time:2022-05-12
Views:1324

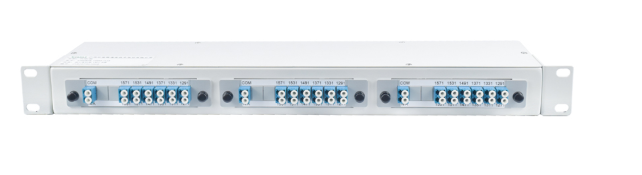

USource 6 12 18 wavelengths passive WDM equipment has been commercialized by operators in China and South Korea in 5G base station networks. USource provides color CWDM DWDM optical modules and passive WDM equipment 1:6 1: 12 1:18 combination solutions.
10G SFP+ CWDM 10KM O-band, 1270-1370nm 6CH
10G SFP+ CWDM 10KM C-band, 1470-1570nm 6CH
25G SFP28 CWDM 10KM O-band, 1270-1370nm 6CH
25G SFP28 CWDM 10KM C-band, 1470-1570nm 6CH
25G SFP28 LWDM 10KM 12CH
25G SFP28 DWDM 10KM 100GHz
| CWDM 6CH or 12CH | MWDM 12CH | COT/RT 100G/800G O band | ||||||
| 1271 | 1271 | 1271-3.5 | 1267.5 | Channel 1 | DML+PIN+TEC | 1286.66 | L1 | 1269.23 |
| 1291 | 1271+3.5 | 1274.5 | Channel 2 | L2 | 1273.54 | |||
| 1291 | 1311 | 1291-3.5 | 1287.5 | Channel 3 | 1291.1 | L3 | 1277.89 | |
| 1331 | 1291+3.5 | 1294.5 | Channel 4 | L4 | 1282.26 | |||
| 1311 | 1351 | 1311-3.5 | 1307.5 | Channel 5 | 1295.56 | L5 | 1286.66 | |
| 1371 | 1311+3.5 | 1314.5 | Channel 6 | L6 | 1291.1 | |||
| 1331 | 1471 | 1331-3.5 | 1327.5 | Channel 7 | 1300.05 | L7 | 1295.56 | |
| 1491 | 1331+3.5 | 1334.5 | Channel 8 | L8 | 1300.05 | |||
| 1351 | 1511 | 1351-3.5 | 1347.5 | Channel 9 | DML+APD+TEC | 1304.58 | L9 | 1304.58 |
| 1531 | 1351+3.5 | 1354.5 | Channel 10 | L10 | 1309.14 | |||
| 1371 | 1551 | 1371-3.5 | 1367.5 | Channel 11 | 1309.14 | L11 | 1313.73 | |
| 1571 | 1371+3.5 | 1374.5 | Channel 12 | L15 | 1332.41 | |||
