100G QSFP28

< >

产品特性：

Compliant with the QSFP28 MSA Technical Specifications.

Supports operation for a data rate of 103.1Gb/s.

Maximum link length of 10km on Single Mode Fiber (SMF).

Optical specifications are compliant with IEEE802.3ba 100GBASE-LR4.

Low speed electrical signal is compliant with SFF-8679.

High speed electrical signal is compliant with 802.3bm CAUI-4.

Digital diagnostic functions are available via the I2C interface, as specified by SFF-8636.

4x25Gb/s DFB-based LAN-WDM transmitter with central wavelengths of 4channels 1295.56, 1300.05, 1304.58 and 1309.14 nm.

Duplex LC receptacles.

Power Dissipation < 4.0W

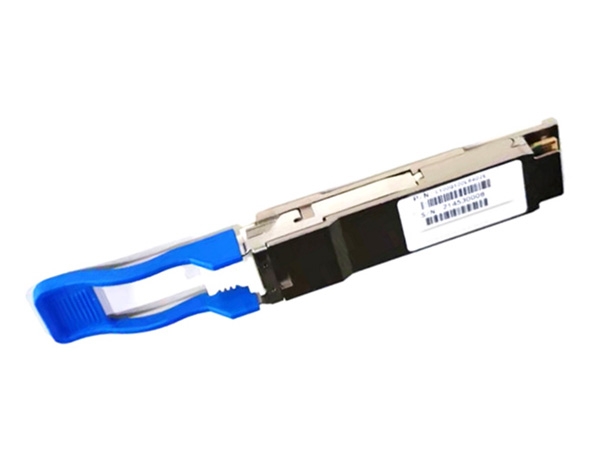

USource 100G QSFP28 LR4 module is a 4x25G single-mode fiber, hot-pluggable optical transceiver. USource‘s micro-optics technology enables the integration of 4 transmitters, 4 receivers and an optical MUX/ DeMUX into a small form factor package that delivers up to 112Gbps data link in a compact QSFP28 footprint.

The optical connectivity is based on two singlemode fiber (SMF) LC connectors, one for Tx and one for Rx. The Tx and Rx each consist of 4x25GB/s LAN-WDM channels, which is designed for applications with a reach up to 10Km.
