BOSA

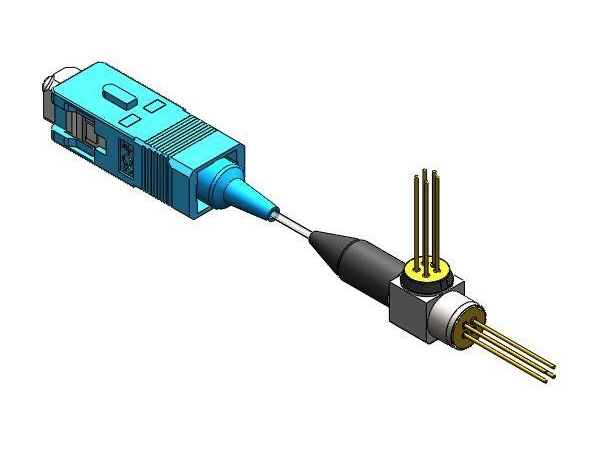

GPON ONU BOSA Diplexer SC pigtail

Features
Single fiber bi-directional data links with Asymmetric Data Rate
DFB 1310nm laser diode as 1.244Gb/s transmitter
APD 1490nm with TIA and 2.488Gb/s post amplifier receiver
Pigtail SC/APC or SC/UPC optional
RoHS compliant and lead-free
Operation Temperature: -20℃ ~ 85℃
Applications
FTTx application
GPON ONU
  • USource GPON ONU BOSA Diplexer with SC pigtail is a bi-directional transceiver device suitable for GPON ONU application. The device consists of a transmitter, a receiver, WDM filter and a single mode fiber pigtail . The transmitter section uses the uncooled 1310nm DFB Laser Chip with a monitor photodiode, the receiver section uses the 1490nm Continue-Mode APD or PIN Receiver with Super TIA.

    BOSA Diplexer for GPON EPON
    Part No. Form ODN Class Data rate Wavelength Reach Receptacle
    UGP-N2U BOSA GPON Tx1.25G/Rx2.5G Tx1310nm/Rx1490nm 20km SC/UPC
    UGP-N2A BOSA GPON Tx1.25G/Rx2.5G Tx1310nm/Rx1490nm 20km SC/APC
    UGP-NTS Triplexer GPON Tx1.25G/Rx2.5G Tx1310/Rx1490 1550 20km SC/APC
    UEP-N2U BOSA EPON Tx1.25G/Rx1.25G Tx1310nm/Rx1490nm 20km SC/UPC
    UEP-N2A BOSA EPON Tx1.25G/Rx1.25G Tx1310nm/Rx1490nm 20km SC/APC
  • Please submit your queries, Engineer will offer a quick and professional response!

    *

    *

    *

    *
